ALCOPANEL FR

ALCOPANEL FR is the optimal exterior material for construction, featuring a unique fire-resistant core made of special flame retardant and polyolefin, which does not produce toxic gases in the event of a fire.

sandwiched between aluminum skins, creating a highly effective composite panel. The top and bottom aluminum skins are joined together. The fluorocarbon coating on the upper aluminum surface not only offers a wide range of implementation colors but also ensures excellent weather resistance that remains unchanged over an extended period, allowing for diverse architectural expressions.

ALCOEMBO(FRONT AL, EMBO, REAR AL)

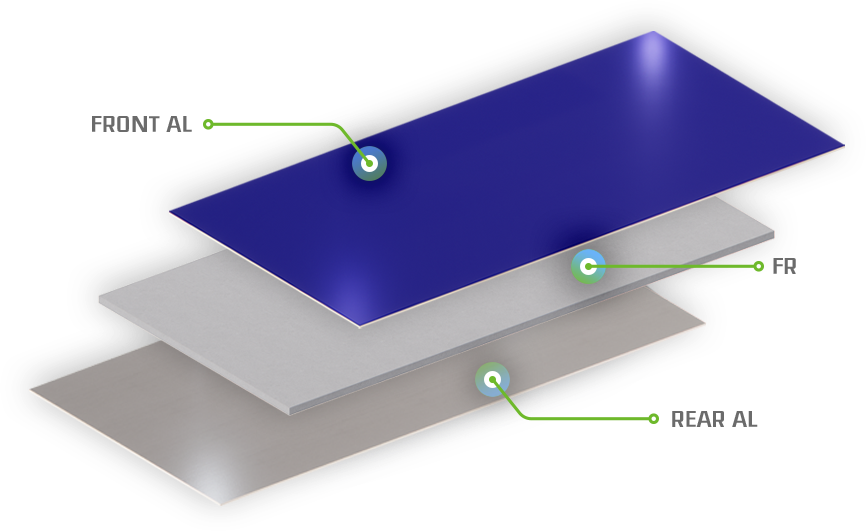

ALCOPANEL FRDiagram
ALCOPANEL FR
Front side pre-coated aluminium skin 0.5mm
Fire Rated mineral core 3mm
Rear side mill finished aluminium skin 0.5mm

- Product characteristic -

난연성

Fire resistant

- Product specifications -

제품 스펙
Item Specification Standard size Remarks
ALCOPANEL FR Thickness 4mm 3~6mm
Width 1020, 1250, 1575mm 860~1600mm available
Length Max 8,000mm -
Weight 7.5kg/m2 -
Core Mineral Infilled 3mm EN 13501-1 B1
Aluminium Skin Alloy A3003 h16 Others are available
Thickness 0.5mm 0.3~0.5mm
※ General Properties
일반 물성
Test standard Subject Result
ASTM E8 Tensile Strength 55 Mpa 5.6 kgf/mm2
Modulus of Elasticity 17 Gpa 1680 kgf/mm2
Yield Strength 50 Mpa 5.1 kgf/mm2
Elongation 2.45% -
ASTM C393 Core Shear Strength 1.49 Mpa 220 psi
Facing Stress 223 Mpa 33 ksi
Flexural Elasticity 28 Gpa -
ASTM D1781 Climbing Drum Peel for Adhesives Avr. 102.5 LBS -
ASTM E330-02 Wind pressure performance test NO FAILURE / PASSED / PASSED -
ISO 10140-2:2010, ISO 717-1:2013 Sound Insultation PASSED -
※ Fire Rating Performance
난연 성능
Test standard Subject Result
ASTM E119 2 Hours Fire tests of the ACP wall 120 min
BS 476 PART 6 Fire propagation test -
BS 476 PART 7 Surface spread of flame test CLASS 1
EN 13501-1 B1 GRADE Fire Behaviour B
BS 8414-1:2020 External fire spread Passed
Internal fire spread Passed
Visible flaming Passed
Mechanical Performance Passed
Burning Debris and Pool Fires Passed
NFPA 285 Evaluation of Fire propagation characteristics of exterior wall Passed
DIN 4102 Reaction to Fire testing according to DIN 4102, class B1 Class B1
ASTM E84 Flame Spread Index, Smoke Developed Index 0, 15 (CLASS A)
EN ISO 11925-2 Ignition of specimen NO
KS F 2271, ISO 5660-1:2015 Heat Release Test, Gas Toxicity Test PASSED
